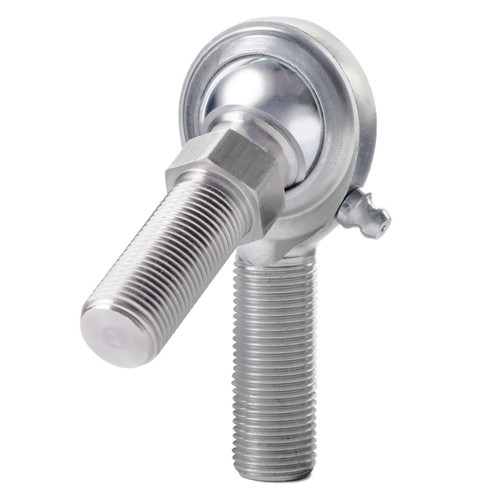

QA1’s CM-T Series carbon steel male rod ends with self-lubricating PTFE liner are ideal for a range of commercial applications and are constructed using a traditional two-piece design. These rod ends are also protective-coated for corrosion resistance and are available with right- or left-hand threads. Stud configurations are available.
- BALL: 52100 Bearing Steel, Heat Treated, Precision Ground, Hard Chrome Plated
- LINER: Self-Lubricating PTFE
- BODY: Carbon Steel, Protective Coated for Corrosion Resistance
Specifications
- Rod End SeriesC Series
- Style/Construction2 Piece Carbon
- Bore0.5000in. or 1/2in.
- Thread DirectionRH
- Thread Size and Pitch5/8in.-18
- Male or Female ThreadMale
- PTFE Lined?Yes
