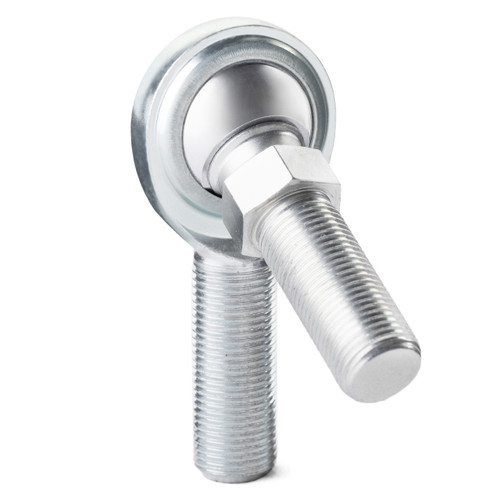

QA1’s CM Series carbon steel male rod ends are ideal for a range of commercial applications and are constructed using a traditional two-piece design. These rod ends are protective-coated for corrosion resistance and are available with right- or left-hand threads. Grease fittings and stud configurations are also available.
- BALL: 52100 Bearing Steel, Heat Treated, Precision Ground, Hard Chrome Plated
- BODY: Carbon Steel, Protective Coated for Corrosion Resistance
- NOTE: Load ratings apply only to rod ends without grease fittings. For ratings with grease fittings, please contact QA1.
Specifications
- Rod End SeriesC Series
- Style/Construction2 Piece Carbon
- Bore0.6250in. or 5/8in.
- Thread DirectionLH
- Thread Size and Pitch3/4in.-16
- Male or Female ThreadMale
- PTFE Lined?No
