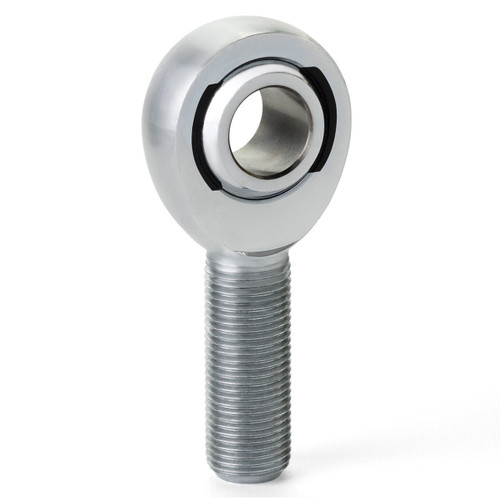

QA1’s EXM Series high-strength carbon steel rod ends include a unique loader slot design and have increased cross-sectional thickness. As an economical alternative to alloy/chromoly, QA1 is the exclusive provider of carbon steel loader slot rod ends. The reinforced Nylon injection molded race with self-lubricating PTFE won't pound out like other styles and helps keep dirt and debris out for excellent performance. This design results in metal-to-metal support for heavy shock loads and smooth operation for low loads, making it an excellent solution for a broad range of applications. When even more strength is needed, consider QA1 X Series rod ends. Available with right- or left-hand threads. Stud configurations are also available.
- BALL: 52100 Bearing Steel, Heat Treated, Precision Ground, Hard Chrome Plated
- RACE: Self-Lubricating Reinforced Nylon 12 with PTFE
- BODY: Carbon Steel (Alloy/Chromoly Steel - Mfr.'s Option), Protective Coated for Corrosion Resistance
- FEATURES: Metal-to-Metal Support for Heavy Shock Loads, Increased Cross-Sectional Thickness for Greater Tensile Strength
Specifications
- Rod End SeriesEX Series
- Style/ConstructionCarbon Loader Slot
- Bore0.6250in. or 5/8in.
- Thread DirectionLH
- Thread Size and Pitch5/8in.-18
- Male or Female ThreadMale
- PTFE Lined?Yes
