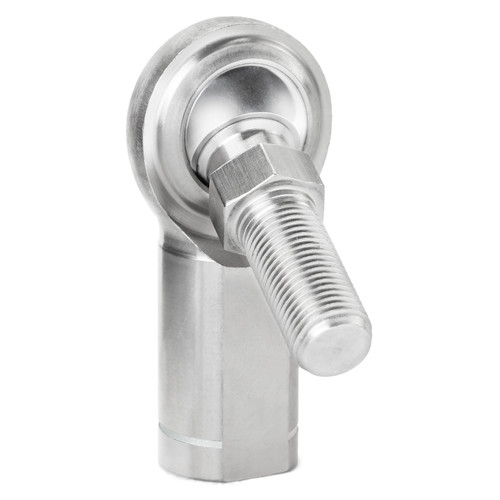

QA1’s GM-T Series stainless steel male rod ends are constructed using a traditional two-piece design which is ideal for use in a range of commercial applications. GM-T Series rod ends feature a 300 series stainless steel body and a self-lubricating PTFE liner, making them an excellent choice for use in corrosive environments. Available in both right- or left-hand threads. Stud configurations are also available.
- BALL: 440C Stainless Steel, Heat Treated, Precision Ground, Hard Chrome Plated
- LINER: Self-Lubricating PTFE
- BODY: 300 Series Stainless Steel
Specifications
- Rod End SeriesG Series
- Style/Construction2 Piece Stainless
- Bore0.5000in. or 1/2in.
- Thread DirectionLH
- Thread Size and Pitch1/2in.-20
- Male or Female ThreadMale
- PTFE Lined?Yes
