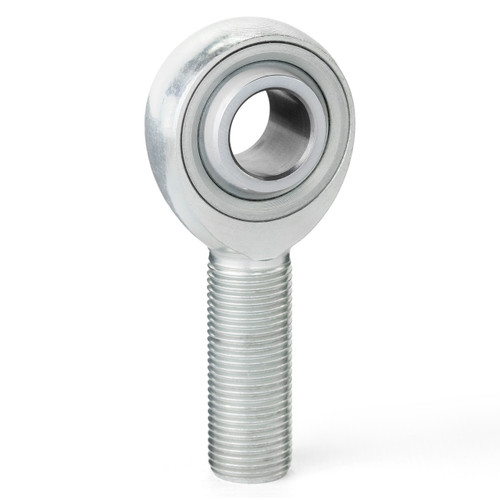

QA1's HM-T Series alloy/chromoly male rod ends are constructed using a traditional three-piece design and include a self-lubricating PTFE liner. These precision rod ends are heat treated and are available in right- or left-hand threads. Stud configurations are also available.
- BALL: 52100 Bearing Steel, Heat Treated, Hard Chrome Plated, Precision Ground
- RACE: Stainless Steel
- LINER: Self-Lubricating PTFE
- BODY: Alloy/Chromoly Steel, Heat Treated, Protective Coated for Corrosion Resistance
Specifications
- Rod End SeriesH Series
- Style/Construction3 Piece Alloy
- Bore0.3750in. or 3/8in.
- Thread DirectionRH
- Thread Size and Pitch3/8in.-24
- Male or Female ThreadMale
- PTFE Lined?Yes
