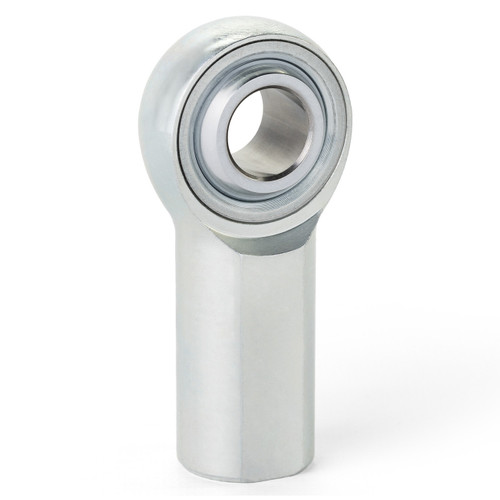

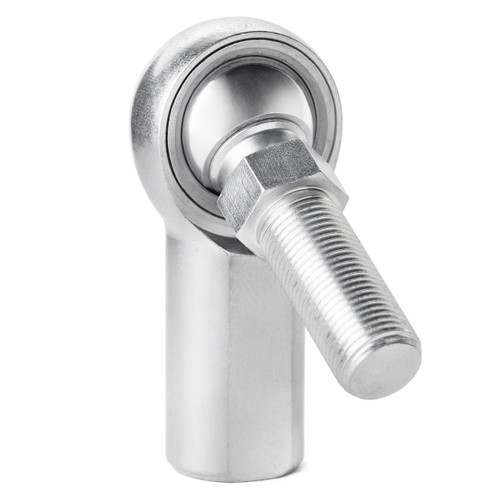

QA1's HF-T Series alloy/chromoly female rod ends are constructed using a traditional three-piece design and include a self-lubricating PTFE liner. These precision rod ends are heat treated and are available in right- or left-hand threads. Stud configurations are also available.
- BALL: 52100 Bearing Steel, Heat Treated, Precision Ground, Hard Chrome Plated
- RACE: Stainless Steel
- LINER: Self-Lubricating PTFE
- BODY: Alloy/Chromoly Steel, Heat Treated, Protective Coated for Corrosion Resistance
Specifications
- Rod End SeriesH Series
- Style/Construction3 Piece Alloy
- Bore0.3125in. or 5/16in.
- Thread DirectionLH
- Thread Size and Pitch5/16in.-24
- Male or Female ThreadFemale
- PTFE Lined?Yes
