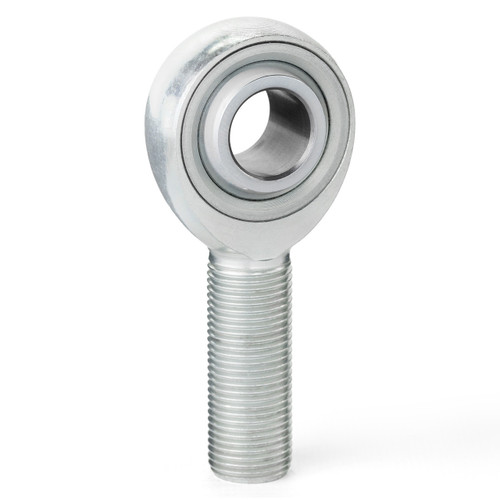

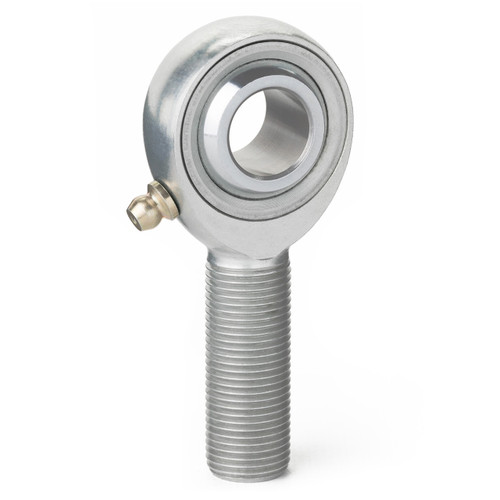

QA1’s KM-T Series carbon steel male rod ends are constructed using a traditional three-piece design and include a self-lubricating PTFE liner. These precision rod ends are designed for high-load applications and are available in right- or left-hand threads. Stud configurations are also available.
- BALL: 52100 Bearing Steel, Heat Treated, Precision Ground, Hard Chrome Plated
- RACE: Stainless Steel
- LINER: Self-Lubricating PTFE
- BODY: Carbon Steel (Alloy/Chromoly Steel - Mfr.'s Option), Protective Coated for Corrosion Resistance
Specifications
- Rod End SeriesK Series
- Style/Construction3 Piece Carbon
- Bore1.0000in. or 1in.
- Thread DirectionLH
- Thread Size and Pitch1in.-14
- Male or Female ThreadMale
- PTFE Lined?Yes
