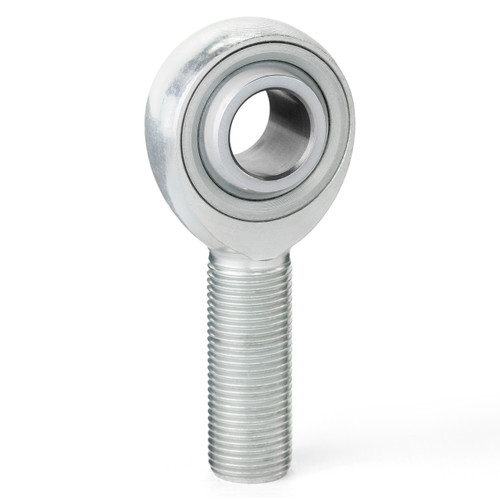

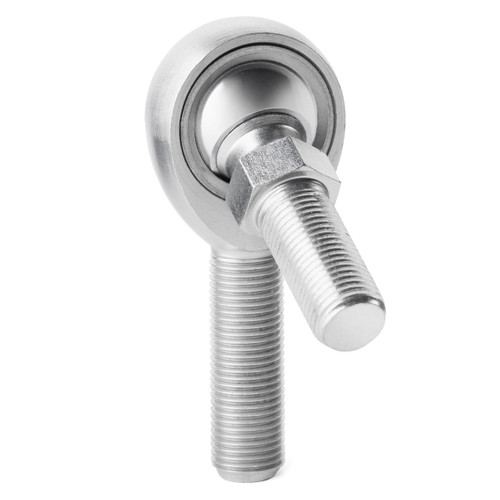

QA1’s KM Series carbon steel male rod ends are constructed using a traditional three-piece design. KM Series precision rod ends have a higher ball-to-race conformity, which creates tighter tolerances. This makes them ideal for precision applications where tight tolerances critical. These precision rod ends are designed for high-load applications and are available in right- or left-hand threads. Grease fittings and stud configurations are available. Also available in large bore sizes.
- BALL: 52100 Bearing Steel, Heat Treated, Hard Chrome Plated, Precision Ground
- RACE: Alloy Steel, Heat Treated
- BODY: Carbon Steel (Alloy Steel - Mfr.'s Option), Protective Coated for Corrosion Resistance
Specifications
- Rod End SeriesK Series
- Style/Construction3 Piece Carbon
- Bore0.1875in. or 3/16in.
- Thread DirectionLH
- Thread Size and Pitch10-32
- Male or Female ThreadMale
- PTFE Lined?No
