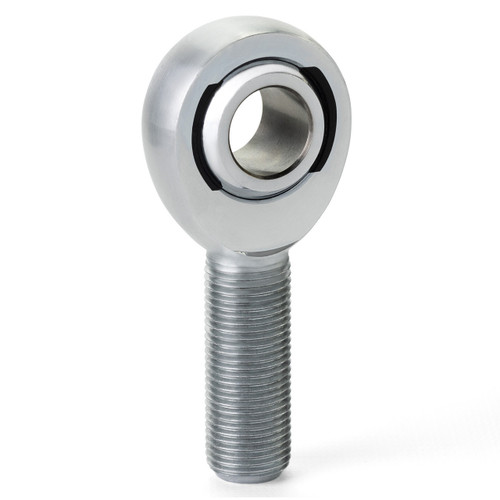

QA1’s MXM Series alloy/chromoly steel metric male rod ends include a unique loader slot design and deliver ultra-high strength and performance. MXM Series rod ends include a reinforced Nylon 12 injection molded race with self-lubricating PTFE that helps keep out dirt and debris. This design results in metal-to-metal support for heavy shock loads and smooth operation for low loads. MXM Series rod ends offer good overall value and provide the best performance for most applications. Available with right- or left-hand threads. Stud configurations are available.
- BALL: 52100 Bearing Steel, Heat Treated, Precision Ground, Hard Chrome Plated
- RACE: Reinforced Nylon 12 with Self-Lubricating PTFE
- BODY: Heat Treated Alloy/Chromoly Steel, Protective Coating for Corrosion Resistance
- FEATURES: Metal-to-Metal Support for Heavy Shock Loads, Increased Cross-Sectional Thickness for Greater Tensile Strength
Specifications
- Rod End SeriesMX Series
- Style/ConstructionAlloy Loader Slot
- Bore12mm
- Thread DirectionRH
- Thread Size and PitchM12X1.75
- Male or Female ThreadMale
- PTFE Lined?Yes
