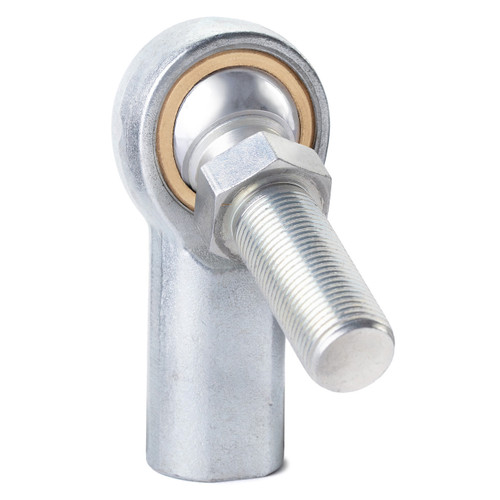

QA1's VF Series carbon steel female rod ends with a bronze race are generally appropriate for low-load, high-oscillation commercial applications. These rod ends are protective-coated for corrosion resistance and are available with right- or left-hand threads. Grease fittings and stud configurations are available.
- BALL: 52100 Bearing Steel, Heat Treated, Precision Ground, Hard Chrome Plated
- RACE: Sintered Bronze, Self-Lubricating Oil impregnated
- BODY: Carbon Steel, Protective Coating for Corrosion Resistance
Specifications
- Rod End SeriesV Series
- Style/Construction3 Piece Bronze Race
- Bore0.4375in. or 7/16in.
- Thread DirectionRH
- Thread Size and Pitch7/16in.-20
- Male or Female ThreadFemale
- PTFE Lined?No
