Powersports Shocks & Suspension Components for ATV, UTV & Other Off-Road Platforms

Overcoming Powersports Shock & Suspension Challenges with QA1

Monotube Shock Innovation + OEM-Ready Engineering from QA1

From rugged ATVs and high-performance side-by-side UTVs to extreme dune and desert racing, enthusiasts demand more from their equipment—and their Powersports shocks & suspension components—than ever before.

Longer travel. High shaft velocities. Repeated impact loading. Exposure to dirt, sand, water, and debris.

For OEM engineers, platform managers, and purchasing teams, the challenge isn’t just building a system that works—it’s delivering consistent performance, durability, and manufacturability at scale.

QA1 partners with Powersports OEMs and performance upfitters to design, build, and supply precision shocks, rod ends, and suspension components engineered specifically for these high-performance environments.

Designed for Real-World Powersports Applications

Whether it’s an ATV navigating uneven terrain, a UTV absorbing high-speed trail impact, or a sand car in the dunes, suspension systems need to perform under extreme and variable conditions:

• Longer suspension travel with high shaft speeds

• Continuous energy input from rough terrain
• Heat buildup that can degrade damping consistency
• Contaminants like sand, mud and water that accelerate wear
• Tight packaging constraints across vehicle platforms

These realities demand application-specific engineering.

Featured Innovation: Monotube Shocks for Powersports Platforms

One of the most important advancements in Powersports suspension design is the adoption of monotube shock absorbers—especially for high-performance applications.

Why Monotube Shocks Work for Powersports

Monotube shocks are inherently suited for high-performance off-road applications because they:

• Support larger piston diameters → increased damping control and force capability
• Maximize oil flow → improved response at high shaft velocities
• Superior heat dissipation → more consistent performance during aggressive duty cycles
• Precise tuning capability → better control across varied terrain and use cases

For vehicles operating in dunes, trails, rock crawling, or racing environments—monotube shocks provide the thermal stability and control consistency required to maintain performance under stress.

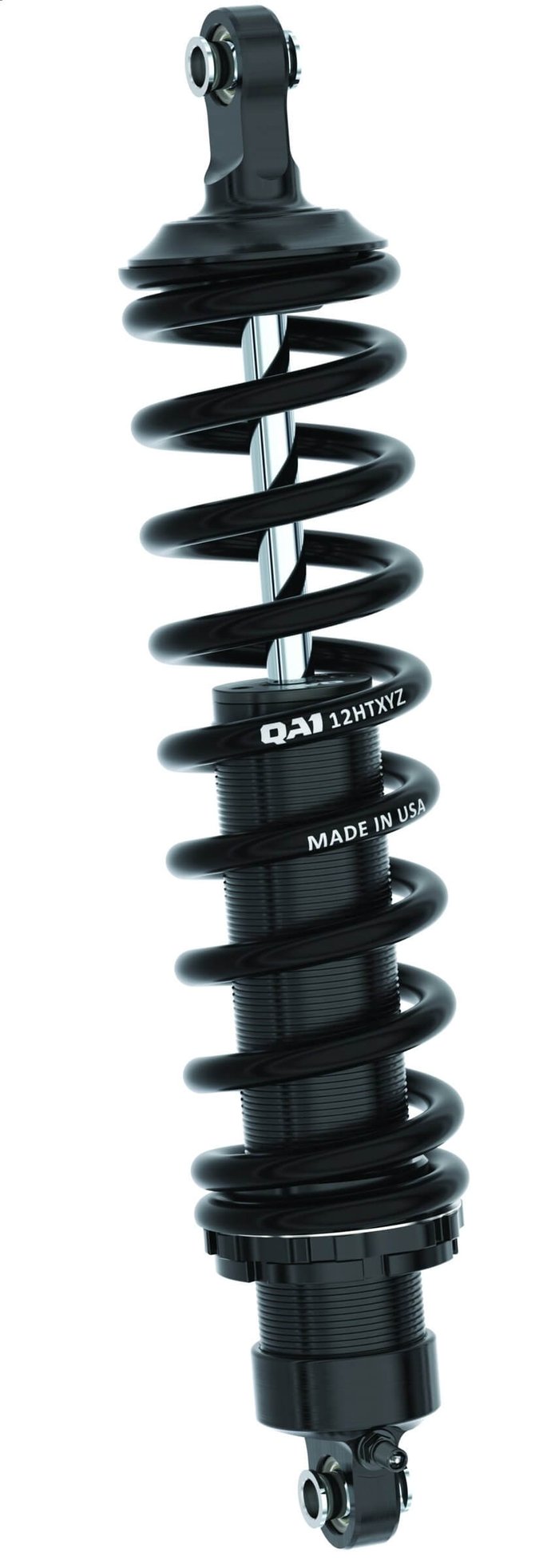

QA1 Monotube Capability Snapshot (Built for Powersports)

QA1’s monotube shock platform is engineered specifically for the demands of Powersports OEM applications:

• Piston Diameter: 46 mm (1.8")

          → Delivers increased damping force and responsiveness

• Custom Valving Options:
  • Linear
  • Digressive
  • Progressive

      → Tuned for ride quality, handling,                            and terrain performance

• Stroke Lengths: Up to 12"
   → Supports long-travel suspension                        systems
• Rod Diameters:
  • 15 mm (.590")
  • 18 mm (.71")
  • Custom configurations available
• Sealing System:
  • Redundant shaft seals

      → Enhanced durability in sand,                                       mud, and debris

• Gas Charge Configuration:
  • Internal floating piston (IFP)
  • Mono-body or reservoir configurations
  • Sealed, Schrader valve, or hyperscrew configurations
• Adjustability Options:
  • Fixed valving, single, double, or triple adjustable (high- and low-speed compression + low-speed rebound control)

Bottom Line: QA1 delivers fully configurable monotube shock solutions, tailored to the performance and durability requirements of each Powersports platform.

Complete Powersports Suspension Component Capability

High-performing suspension systems require more than shocks alone. QA1 supports OEMs and upfitters with a full range of integrated suspension components for ATV, UTV, and other rugged applications.

Engineering & Design Support

• Suspension system design (shocks, control arms, sway bars, radius rods)
• Geometry optimization and load path validation
• Packaging integration within OEM constraints
• Early-stage collaboration to reduce development risk

High-Performance Powersports Shocks & Suspension Components

• Monotube and twin-tube shock absorbers
• High-performance rod ends and spherical bearings

• Rebuildable, serviceable joints for long-term durability
• Ball joints and linkage systems
• Stock and custom spring solutions

Manufacturing & Production Support

• CNC machining and precision fabrication
• Tubular component manufacturing
• Sub-assembly and full assembly capability
• Scalable production from prototype through volume

How OEMs and Upfitters Work with QA1

QA1 supports Powersports programs through flexible engagement models designed to meet different timelines, budgets, and performance goals. We typically follow one of two paths:

1. Custom Design Solutions for OEM Platforms

Best for new platforms or highly differentiated performance targets:

• Early-stage engineering collaboration
• Application-specific designs tailored to performance goals
• Optimization for packaging, durability, and manufacturability
• Flexible production scaling

2. Leveraging Proven Suspension Solutions

Ideal for faster timelines or upgrade programs:

• Access to proven, engineering-backed components
• Flexible volume ordering
• Responsive support and integration guidance
• Differentiated performance upgrade options
• Private label or co-branded supply options

Why Powersports OEMs Choose QA1

QA1 combines engineering depth with manufacturing flexibility to support demanding Powersports shock & suspension applications:

• Monotube and twin-tube shock expertise for high-performance suspension systems
• Application-specific engineering for ATV, UTV, and other rugged off-road platforms
• Proven durability in harsh off-road environments
• Integrated component capability across full suspension systems
• Reliable, scalable supply for production programs

Build the Platform—or the Upgrade That Defines It

Whether you’re engineering a next-generation UTV platform, refining an ATV suspension system, or delivering a high-performance off-road upgrade package, the right component partner matters.

QA1 brings together monotube shock innovation, complete suspension capability, and OEM-focused support to help you deliver performance that holds up in the real world.

Let’s start the conversation.

Contact Our OEM Experts
