What's My Rear Attachment?
QA1 currently offers the U-joint and flange yoke series listed below. Each table below lists their dimensions in reference to the drawing figures. We are always adding more options to our list, so please contact us at 800.721.7761 if you don't see what you're looking for.
U-Joint Series
There are many U-joint sizes to accommodate many different applications and power. The max torque ratings of the driveshafts are determined by the U-joint selected. QA1 choses the best materials for our driveshafts, which is why we use Spicer Life Series U-joints as a standard option. They provide durability and high torque capacity and are sealed for maximum strength and no maintenance.
| U-Joint Series | Joint Type |
Reference Figure |
Cap Diameter (D) |
Width (E) |
Cap Diameter (F) |
Width (G) |
Horsepower / Torque |
|---|---|---|---|---|---|---|---|
| 1350 | Solid | 1 | 1.188" | 3.622" | 1.188" | 3.622" | 2000 HP / 1500 lb*ft |
| 1310 | Solid | 1 | 1.063" | 3.219" | 1.063" | 3.219" | 750 HP / 500 lb*ft |
| 1310-1330 | Conversion | 1 | 1.063" | 3.219" | 1.063" | 3.622" | 750 HP / 500 lb*ft |
| 1310-1350 | Conversion | 1 | 1.063" | 3.219" | 1.188" | 3.622" | 750 HP / 500 lb*ft |
| 1310-3R | Conversion | 2 | 1.063" | 3.219" | 1.125" | 2.556" | 750 HP / 500 lb*ft |

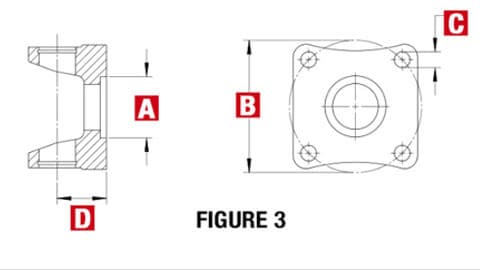

FLANGE YOKE SERIES
The below flange yoke is used on our driveshafts for 1979-2004 Mustangs. Additional flange yoke options will be available soon.
| QA1 Item Number | Fits U-Joint Series |
Reference Figure |
Number of Bolt Holes |
Female Pilot Diameter (A) |
Bolt Hole Circle Diameter (B) |
Hole Diameter | Length - Face to Centerline |
|---|---|---|---|---|---|---|---|
| 9080-133 | |||||||
| 9080-134 | |||||||
| 9080-135 | 1350 | - | 3 | 16mm | 110mm |
