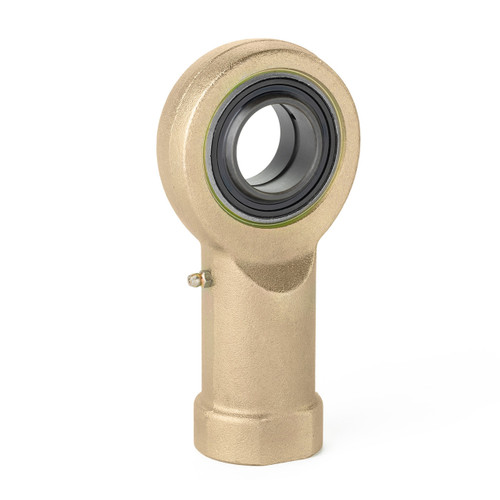

QA1’s KF Series large bore alloy steel female rod ends are constructed using a three-piece design using hardened bearing steel ball/race. The ball and race are MoS2 (Molybdenum Disulfide) coated to reduce friction and wear. These precision rod ends are designed for heavy-duty/high-load applications and are available in right- or left-hand threads. All KF Series large bore rod ends include a grease fitting as standard.
- BALL: 52100 Bearing Steel, Heat Treated, MoS2 Coated
- RACE: 52100 Bearing Steel, Heat Treated, MoS2 Coated, Sealed
- BODY: Alloy Steel, Protective Coated for Corrosion Resistance, Grease Fitting Installed as Standard
Specifications
- Rod End SeriesK Series
- Style/Construction3 Piece Carbon
- Bore1.5000in.or 1-1/2in.
- Thread DirectionRH
- Thread Size and Pitch1-1/2in.-12
- Male or Female ThreadFemale
- PTFE Lined?No
- ConfigurationGreaseable
- Rod Ends & LinkagesInch Rod Ends
