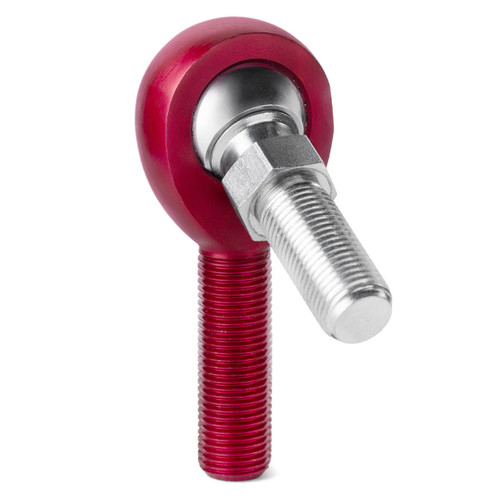

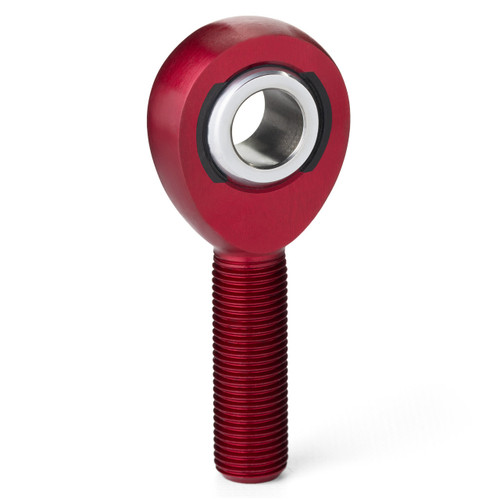

QA1’s AM Series lightweight aluminum male rod ends use a unique loader slot design to save weight in performance applications. They feature a reinforced Nylon race with self-lubricating PTFE that also helps keep out dirt and debris. AM Series rod ends are more than 10% lighter than traditional three-piece aluminum rod ends and are the most wear-resistant aluminum design available. Available with right- or left-hand threads. Stud configurations are also available.
- BALL: 52100 Bearing Steel, Heat Treated, Precision Ground, Hard Chrome Plated
- RACE: Reinforced Nylon 12 with Self-Lubricating PTFE
- BODY: Aircraft Aluminum 7075-T6, Anodized Red Color as Standard
- FEATURES: Metal-to-Metal Support for Heavy Shock Loads, Increased Cross-Sectional Thickness for Greater Tensile Strength
Specifications
- Rod End SeriesA Series
- Style/ConstructionAluminum Loader Slot
- Bore0.6250in. or 5/8in.
- Thread DirectionLH
- Thread Size and Pitch3/4in.-16
- Male or Female ThreadMale
- PTFE Lined?Yes
