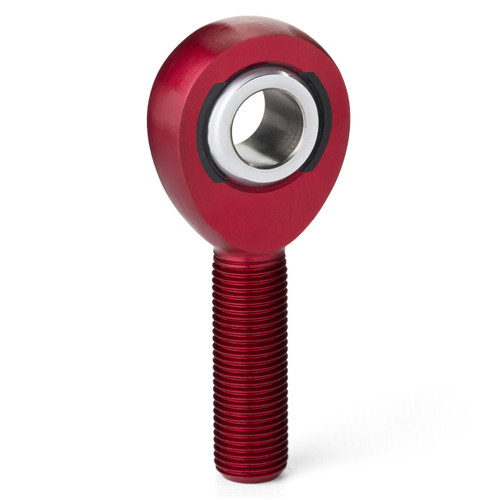

AMR10-12 A Series Aluminum Loader Slot Rod End, 5/8in. Bore, 3/4in.-16 RH Male Thread, PTFE Lined

SKU
AMR10-12
$27.98
Estimated Shipping Date: Nov 11, 2024
Adding to cart… The item has been added

QA1’s AM Series lightweight aluminum male rod ends use a unique loader slot design to save weight in performance applications. They feature a reinforced Nylon race with self-lubricating PTFE that also helps keep out dirt and debris. AM Series rod ends are more than 10% lighter than traditional three-piece aluminum rod ends and are the most wear-resistant aluminum design available. Available with right- or left-hand threads. Stud configurations are also available.

  • BALL: 52100 Bearing Steel, Heat Treated, Precision Ground, Hard Chrome Plated
  • RACE: Reinforced Nylon 12 with Self-Lubricating PTFE
  • BODY: Aircraft Aluminum 7075-T6, Anodized Red Color as Standard
  • FEATURES: Metal-to-Metal Support for Heavy Shock Loads, Increased Cross-Sectional Thickness for Greater Tensile Strength

Specifications

  • Rod End SeriesA Series
  • Style/ConstructionAluminum Loader Slot
  • Bore0.6250in. or 5/8in.
  • Thread DirectionRH
  • Thread Size and Pitch3/4in.-16
  • Male or Female ThreadMale
  • PTFE Lined?Yes
