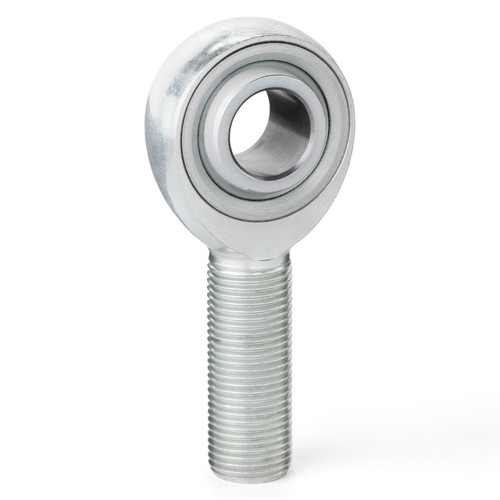

HMR6-7T H Series 3 Piece Alloy Rod End, 3/8in. Bore, 7/16in.-20 RH Male Thread, PTFE Lined

SKU
HMR6-7T
$25.62
Estimated Shipping Date: Oct 17, 2024
Adding to cart… The item has been added

QA1's HM-T Series alloy/chromoly male rod ends are constructed using a traditional three-piece design and include a self-lubricating PTFE liner. These precision rod ends are heat treated and are available in right- or left-hand threads. Stud configurations are also available.

  • BALL: 52100 Bearing Steel, Heat Treated, Hard Chrome Plated, Precision Ground
  • RACE: Stainless Steel
  • LINER: Self-Lubricating PTFE
  • BODY: Alloy/Chromoly Steel, Heat Treated, Protective Coated for Corrosion Resistance

Specifications

  • Rod End SeriesH Series
  • Style/Construction3 Piece Alloy
  • Bore0.3750in. or 3/8in.
  • Thread DirectionRH
  • Thread Size and Pitch7/16in.-20
  • Male or Female ThreadMale
  • PTFE Lined?Yes
