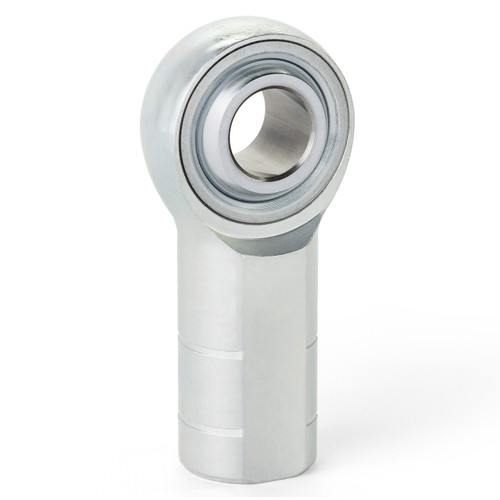

MHFL10 MH Series 3 Piece Alloy Rod End, 10mm Bore, M10X1.5 LH Female Thread

SKU
MHFL10
$22.75
Estimated Shipping Date: Dec 16, 2024
Adding to cart… The item has been added

QA1's MHF Series alloy/chromoly metric female rod ends are precision constructed in a traditional three-piece design. MHF Series precision rod ends have a higher ball-to-race conformity, which creates tighter tolerances. This makes them ideal for precision applications where tight tolerances are critical. These rod ends are heat treated, are available in right- or left-hand threads. Grease fittings and stud configurations are available.

  • BALL: 52100 Bearing Steel, Heat Treated, Precision Ground, Hard Chrome Plated
  • RACE: Alloy/Chromoly Steel
  • BODY: Alloy/Chromoly Steel, Heat Treated, Protective Coated for Corrosion Resistance

Specifications

  • Rod End SeriesMH Series
  • Style/Construction3 Piece Alloy
  • Bore10mm
  • Thread DirectionLH
  • Thread Size and PitchM10X1.5
  • Male or Female ThreadFemale
  • PTFE Lined?No
