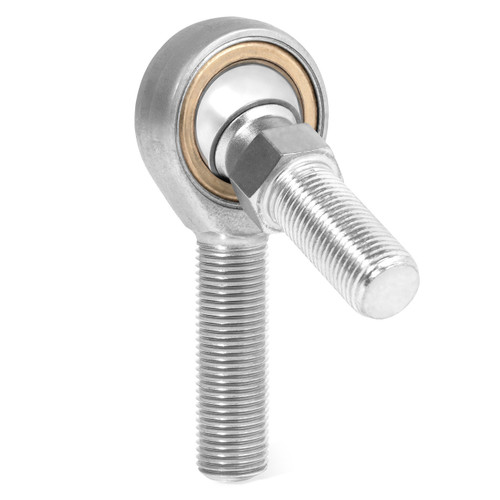

VMR10 V Series 3 Piece Bronze Race Rod End, 5/8in. Bore, 5/8in.-18 RH Male Thread

SKU
VMR10
$16.63
Estimated Shipping Date: Dec 12, 2024
Adding to cart… The item has been added

QA1's VM Series carbon steel male rod ends with a bronze race are generally appropriate for low-load, high-oscillation commercial applications. These rod ends are protective-coated for corrosion resistance and are available with right- or left-hand threads. Grease fittings and stud configurations are available.

  • BALL: 52100 Bearing Steel, Heat Treated, Precision Ground, Hard Chrome Plated
  • RACE: Sintered Bronze, Self-Lubricating Oil impregnated
  • BODY: Carbon Steel, Protective Coating for Corrosion Resistance

Specifications

  • Rod End SeriesV Series
  • Style/Construction3 Piece Bronze Race
  • Bore0.6250in. or 5/8in.
  • Thread DirectionRH
  • Thread Size and Pitch5/8in.-18
  • Male or Female ThreadMale
  • PTFE Lined?No
