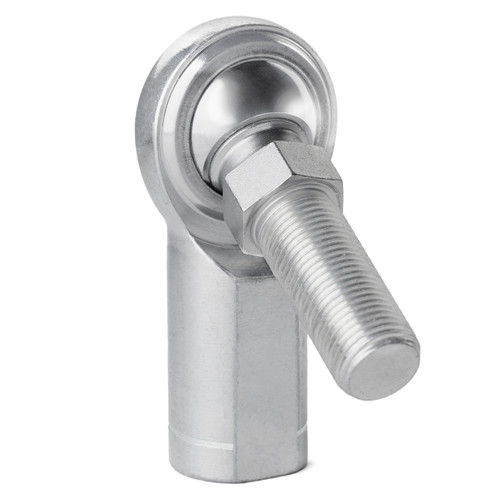

QA1’s CF-T Series carbon steel female rod ends with self-lubricating PTFE liner are ideal for a range of commercial applications and are constructed using a traditional two-piece design. These rod ends are protective-coated for corrosion resistance and are available with right- or left-hand threads. Includes a pre-attached stud with right-hand threads for easy connection and higher misalignment than typical bolt-mounted applications.
- BALL: 52100 Bearing Steel, Heat Treated, Precision Ground, Hard Chrome Plated
- LINER: Self-Lubricating PTFE
- BODY: Carbon Steel, Protective Coated for Corrosion Resistance
- STUD: Carbon Steel
Specifications
- Rod End SeriesC Series
- Style/Construction2 Piece Carbon
- Bore0.3750in. or 3/8in.
- Thread DirectionLH
- Thread Size and Pitch3/8in.-24
- Male or Female ThreadFemale
- PTFE Lined?Yes
- ConfigurationStudded
- Rod Ends & LinkagesInch Rod Ends
