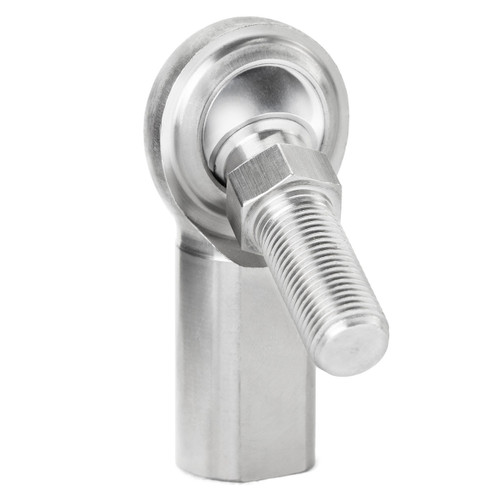

QA1’s GF-T Series stainless steel female rod ends are constructed using a traditional two-piece design which is ideal for use in a range of commercial applications. GFT Series rod ends feature a 300 series stainless steel body and a self-lubricating PTFE liner, making them an excellent choice for use in corrosive environments. Available in both right- or left-hand threads. Includes a pre-attached stud with right-hand threads for easy connection and higher misalignment than typical bolt-mounted applications.
- BALL: 440C Stainless Steel, Heat Treated, Precision Ground, Hard Chrome Plated
- LINER: Self-Lubricating PTFE
- BODY: 300 Series Stainless Steel
- STUD: Stainless Steel
Specifications
- Rod End SeriesG Series
- Style/Construction2 Piece Stainless
- Bore0.2500in. or 1/4in.
- Thread DirectionLH
- Thread Size and Pitch1/4in.-28
- Male or Female ThreadFemale
- PTFE Lined?Yes
- ConfigurationStudded
- Rod Ends & LinkagesInch Rod Ends
