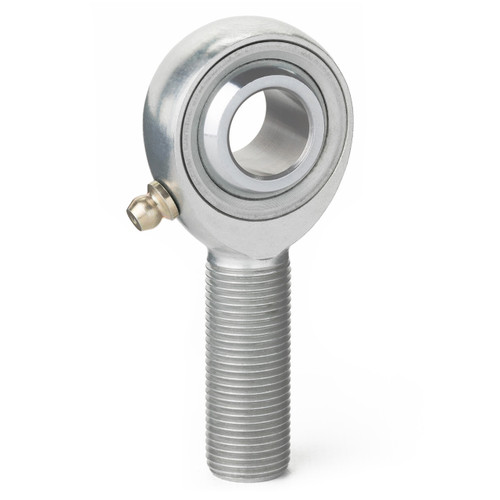

QA1's HM-T Series alloy/chromoly male rod ends are constructed using a traditional three-piece design and include a self-lubricating PTFE liner. These precision rod ends are heat treated and are available in right- or left-hand threads. Includes a pre-attached stud with right-hand threads for easy connection and higher misalignment than typical bolt-mounted applications.
- BALL: 52100 Bearing Steel, Heat Treated, Hard Chrome Plated, Precision Ground
- RACE: Stainless Steel
- LINER: Self-Lubricating PTFE
- BODY: Alloy/Chromoly Steel, Heat Treated, Protective Coated for Corrosion Resistance
- STUD: Carbon Steel
Specifications
- Rod End SeriesH Series
- Style/Construction3 Piece Alloy
- Bore0.4375in. or 7/16in.
- Thread DirectionLH
- Thread Size and Pitch7/16in.-20
- Male or Female ThreadMale
- PTFE Lined?Yes
- ConfigurationStudded
- Rod Ends & LinkagesInch Rod Ends
