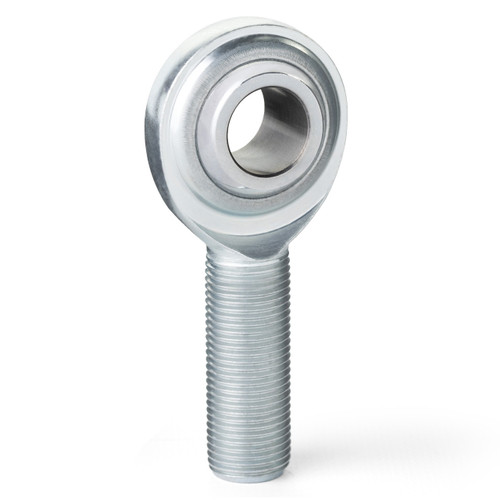

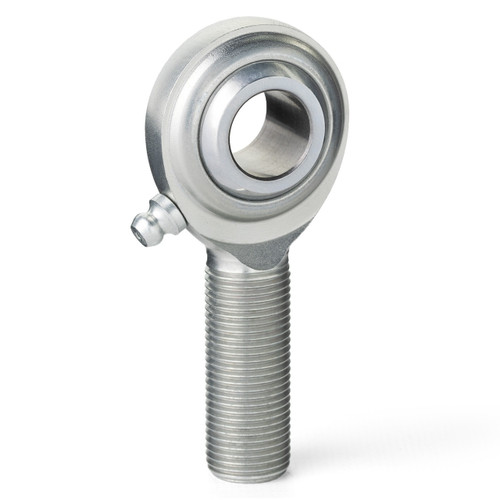

QA1’s MCM Series carbon steel metric male rod ends employ a traditional two-piece construction. These commercial metal-to-metal rod ends are protective coated for corrosion resistance and are available with right- or left-hand threads. MCM series is an economical, commercial grade rod end that is generally appropriate for moderate applications. Includes a pre-attached stud with right-hand threads for easy connection and higher misalignment than typical bolt-mounted applications. Grease fittings are also available for most sizes (except sizes 5 and 6).
- BALL: 52100 Bearing Steel, Heat Treated, Precision Ground, Hard Chrome Plated
- BODY: Carbon Steel, Protective Coated for Corrosion Resistance
- STUD: Carbon Steel
- NOTE: Load ratings apply only to rod ends without grease fittings. For ratings with grease fittings, please contact QA1.
Specifications
- Rod End SeriesMC Series
- Style/Construction2 Piece Carbon
- Bore16mm
- Thread DirectionRH
- Thread Size and PitchM16X2.0
- Male or Female ThreadMale
- PTFE Lined?No
- ConfigurationStudded
- Rod Ends & LinkagesMetric Rod Ends
