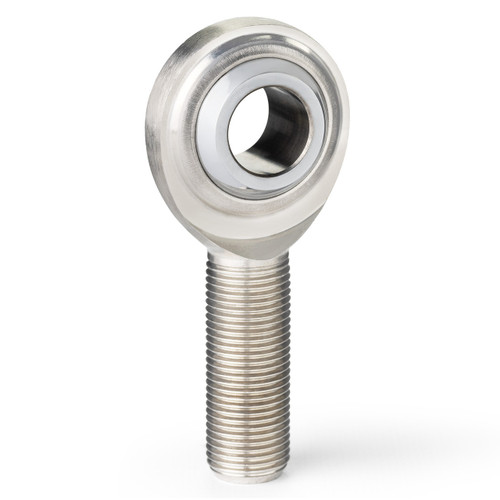

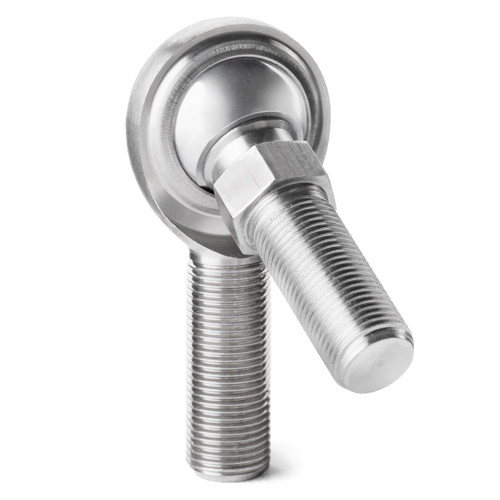

QA1’s MGM-T Series stainless steel metric male rod ends constructed using a traditional two-piece design, making them ideal for a range of commercial applications. They also feature a self-lubricating PTFE liner and a 300 series stainless steel body and are ideal for use in corrosive environments. These metric rod ends are available with right- or left-hand threads. Includes a pre-attached stud with right-hand threads for easy connection and higher misalignment than typical bolt-mounted applications.
- BALL: 440C Stainless Steel, Heat Treated, Precision Ground
- LINER: Self-Lubricating PTFE
- BODY: 300 Series Stainless Steel
- STUD: Stainless Steel
Specifications
- Rod End SeriesMG Series
- Style/Construction2 Piece Stainless
- Bore6mm
- Thread DirectionLH
- Thread Size and PitchM6X1.0
- Male or Female ThreadMale
- PTFE Lined?Yes
- ConfigurationStudded
- Rod Ends & LinkagesMetric Rod Ends
