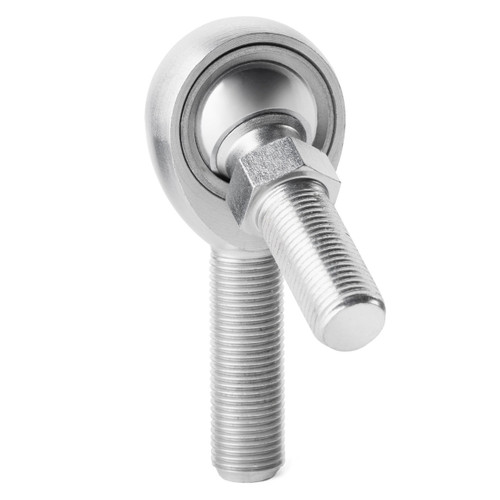

QA1’s MHM-T Series alloy/chromoly steel metric male rod ends are a traditional three-piece design and include a self-lubricating PTFE liner. These precision rod ends are ideal for a variety of applications and are available in right- or left-hand threads. Includes a pre-attached stud with right-hand threads for easy connection and higher misalignment than typical bolt-mounted applications.
- BALL: 52100 Bearing Steel, Heat Treated, Precision Ground, Hard Chrome Plated
- RACE: Stainless Steel, Heat Treated
- LINER: Self-Lubricating PTFE
- BODY: Alloy/Chromoly Steel, Heat Treated, Protective Coated for Corrosion Resistance
- STUD: Carbon Steel
Specifications
- Rod End SeriesMH Series
- Style/Construction3 Piece Alloy
- Bore12mm
- Thread DirectionLH
- Thread Size and PitchM12X1.75
- Male or Female ThreadMale
- PTFE Lined?Yes
- ConfigurationStudded
- Rod Ends & LinkagesMetric Rod Ends
