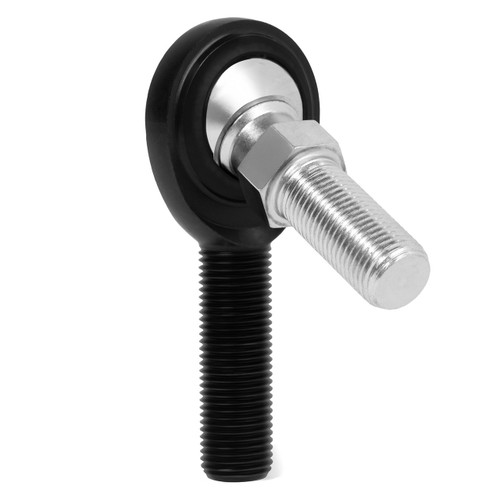

QA1’s PCM Series alloy/chromoly steel male rod ends are designed as an economical, high load two-piece solution – their metal-to-metal contact delivers superior load ratings over carbon steel rod ends. PCM Series rod ends are black oxide coated for durability and available with right- or left-hand threads. Includes a pre-attached stud with right-hand threads for easy connection and higher misalignment than typical bolt-mounted applications. Grease fittings are also available.
- BALL: 52100 Bearing Steel, Heat Treated, Precision Ground, Hard Chrome Plated
- BODY: Alloy/Chromoly Steel, Heat Treated, Metal-to-Metal
- STUD: Carbon Steel
Specifications
- Rod End SeriesPC Series
- Style/Construction2 Piece Alloy
- Bore0.7500in. or 3/4in.
- Thread DirectionLH
- Thread Size and Pitch3/4in.-16
- Male or Female ThreadMale
- PTFE Lined?No
- ConfigurationStudded
- Rod Ends & LinkagesInch Rod Ends
