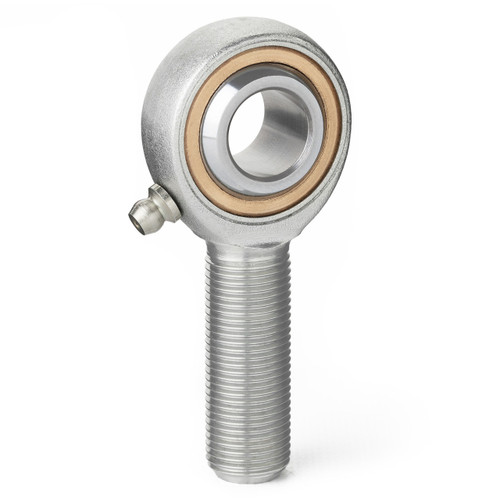

QA1's VM Series carbon steel male rod ends with a bronze race are generally appropriate for low-load, high-oscillation commercial applications. These rod ends are protective-coated for corrosion resistance and are available with right- or left-hand threads. Includes a pre-attached stud with right-hand threads for easy connection and higher misalignment than typical bolt-mounted applications. Grease fittings are also available.
- BALL: 52100 Bearing Steel, Heat Treated, Precision Ground, Hard Chrome Plated
- RACE: Sintered Bronze, Self-Lubricating Oil impregnated
- BODY: Carbon Steel, Protective Coating for Corrosion Resistance
- STUD: Carbon Steel
Specifications
- Rod End SeriesV Series
- Style/Construction3 Piece Bronze Race
- Bore0.4375in. or 7/16in.
- Thread DirectionRH
- Thread Size and Pitch7/16in.-20
- Male or Female ThreadMale
- PTFE Lined?No
- ConfigurationStudded
- Rod Ends & LinkagesInch Rod Ends
